Service Without a Crane

The Tilt-Down Advantage

Conventional turbines need cranes and tower climbs for every inspection. The Carter tilt-down tower changes the economics of ownership entirely.

01

Release & Winch

The hinged tower base is released and a ground-level winch takes the load, lowering the tower under controlled tension.

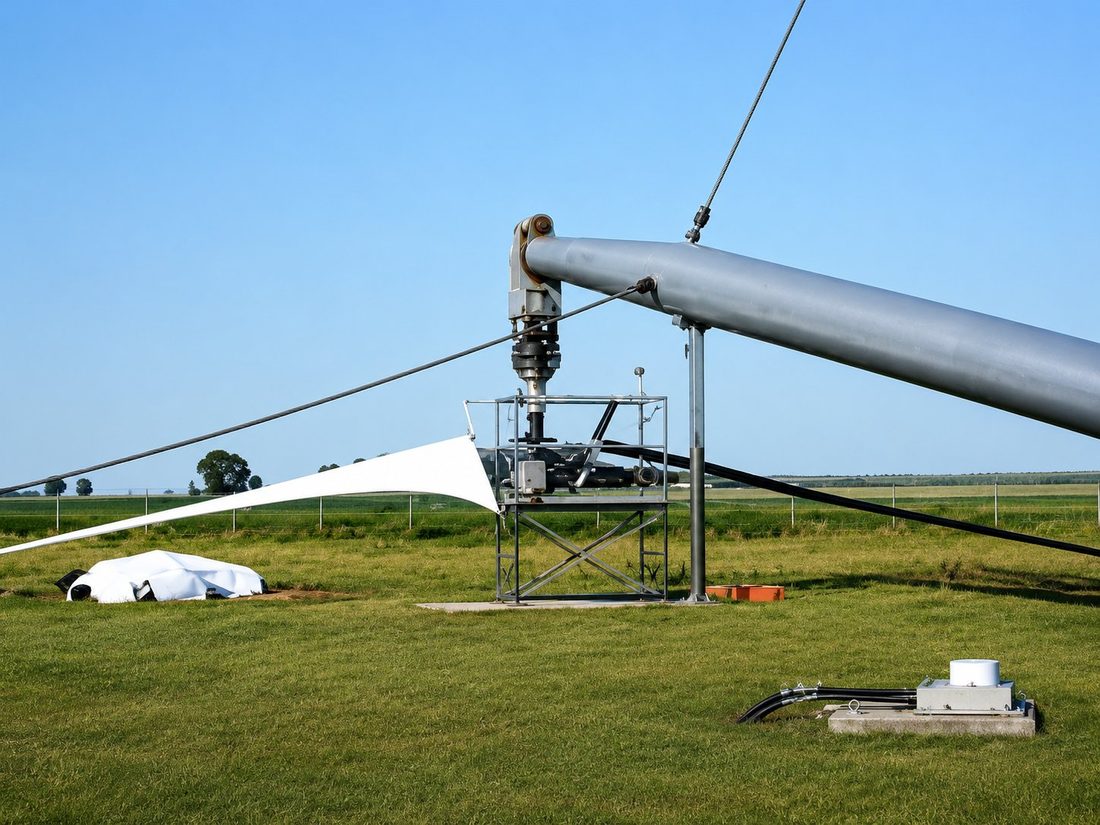

Lowered Carter tower resting on its rest stand, showing the hinged base pintle, guy cables and winch pad

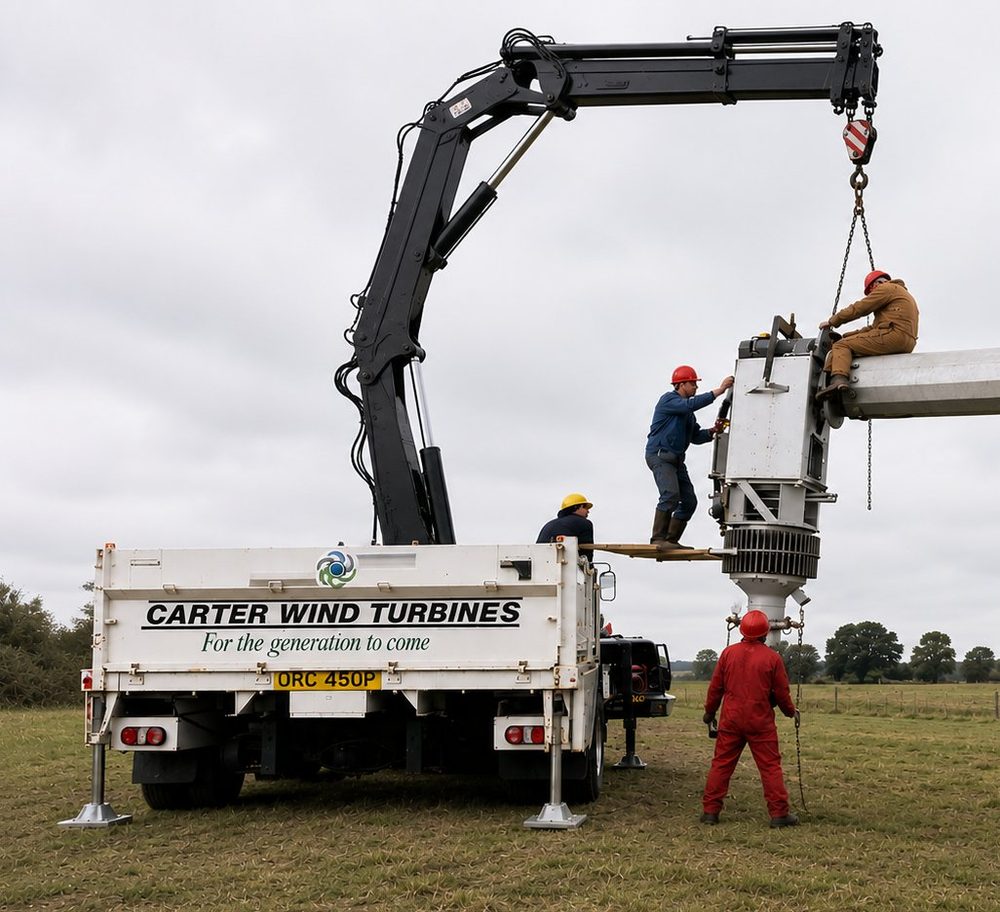

Carter Wind Turbines crane truck lifting the nacelle assembly onto the tower pintle
The tower is lowered and the nacelle assembly is lifted onto the tower pintle and glided onto the main support.

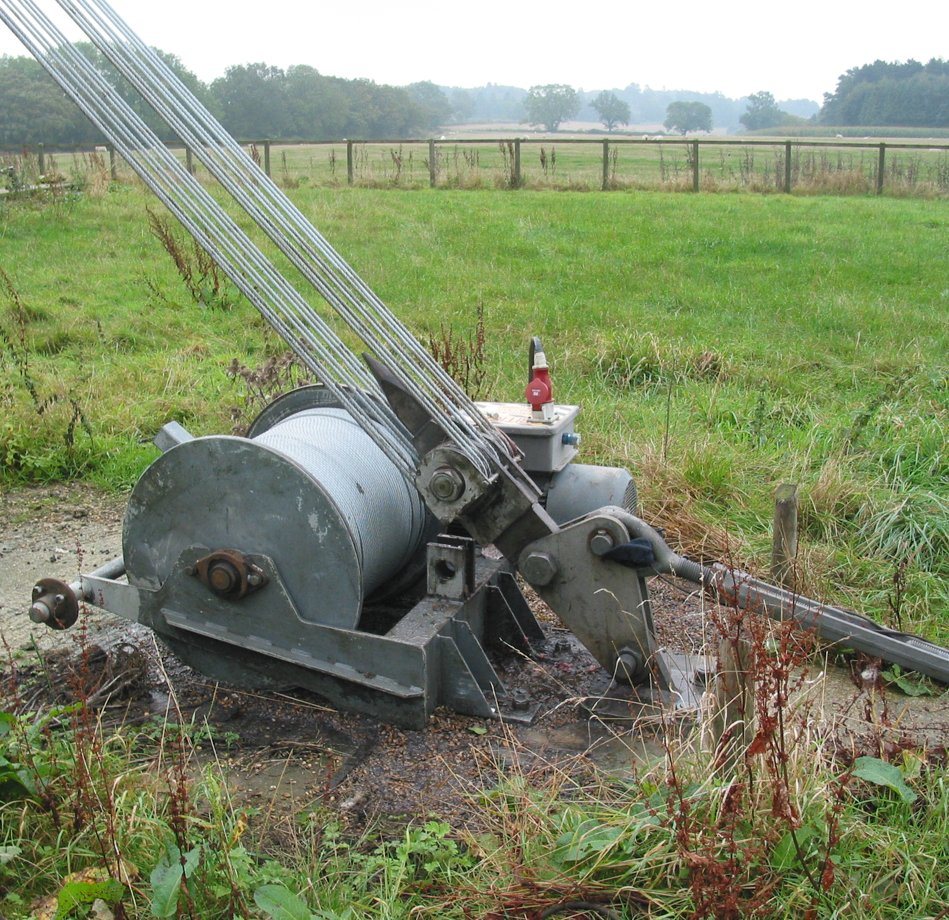

The Orton ground winch and drum on its pad, cables running to the tower
ORTON WINCH
Tower base and hinged pintle bracket on the foundation before the winch is installed

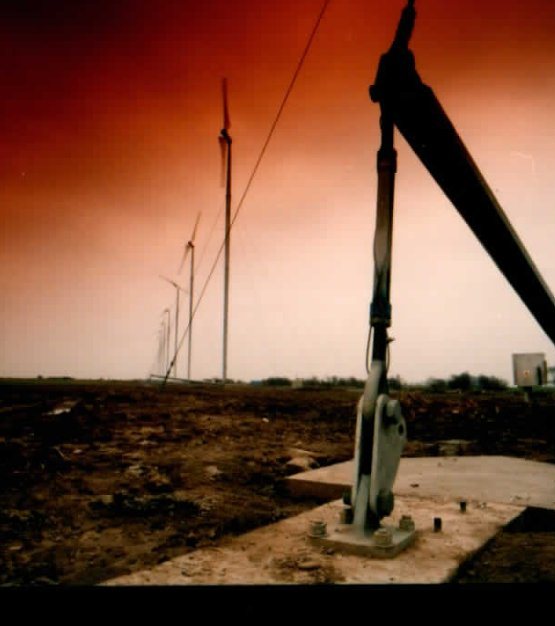

BEFORE WINCH IS INSTALLED
02

Service at Ground Level

Nacelle, generator, and rotor arrive safely at the ground where technicians work without climbing or lifting equipment.

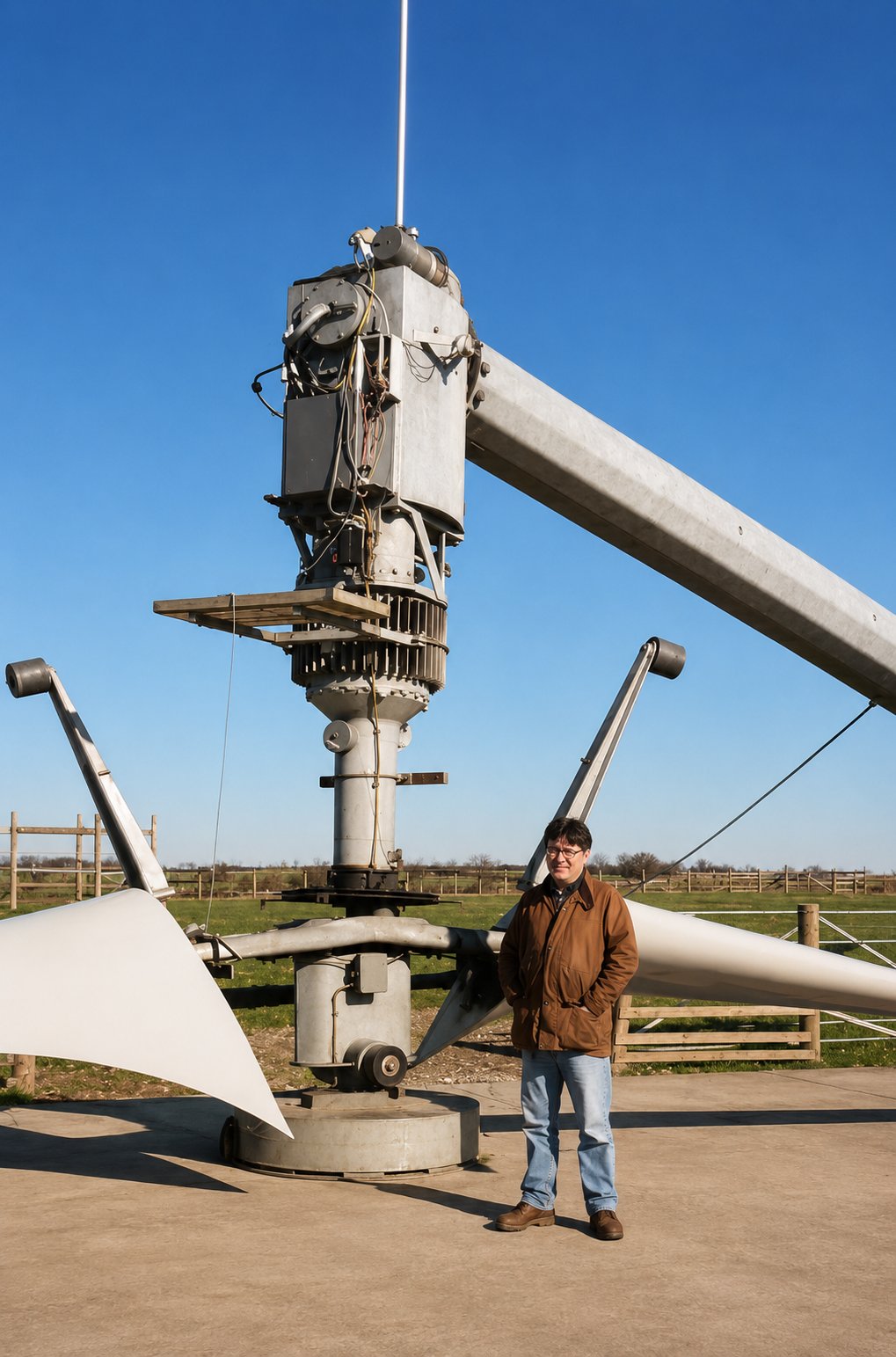

A man standing beside the lowered Carter nacelle and rotor assembly at ground level at Orton, the tilt-down tower lowered behind
Steve at Orton about to remove the nacelle assembly to inspect for cracks.

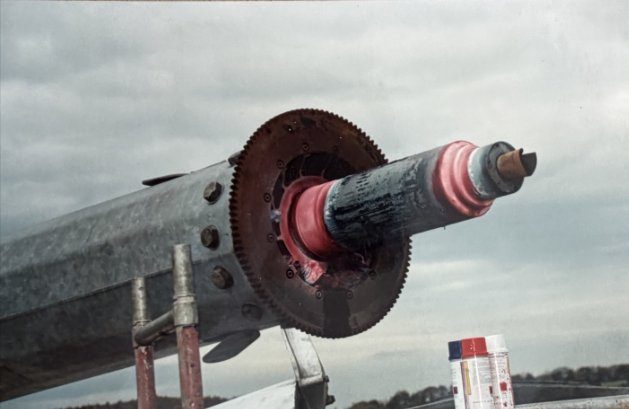

Dye penetrant check for weld cracks in the pintle-to-tower main welds
As part of the major inspection, Steve does a dye-penetrant check for weld cracks in the pintle-to-tower main welds.
Steve removing the generator at ground level and examining the single load-path welded joint for cracks

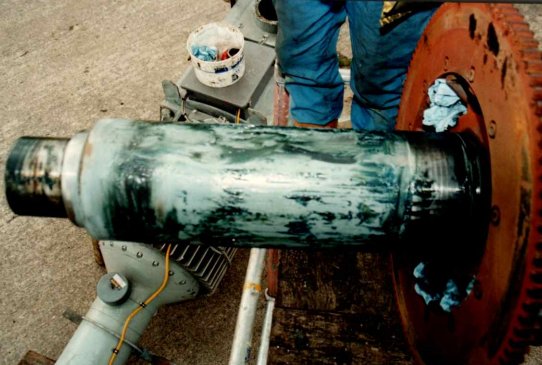

Steve removes the generator and examines the single load-path welded joint for cracks.
Technician checking the nacelle electrical circuits with the cover open at ground level

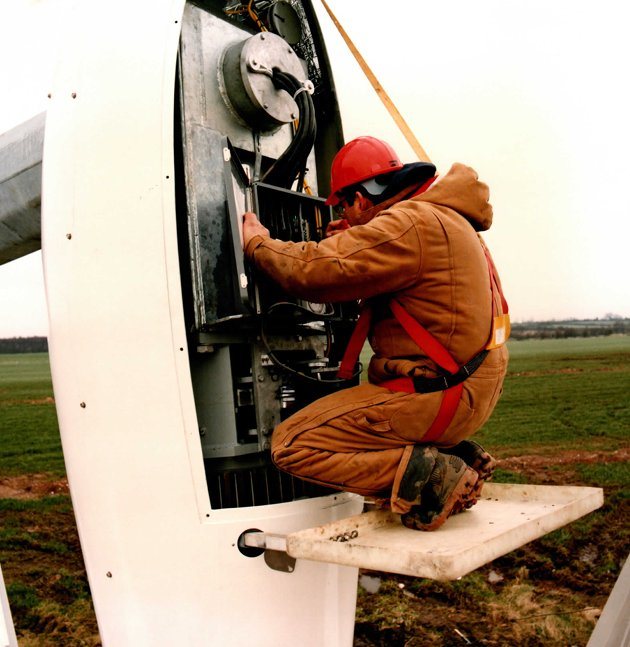

CHECK OF ALL ELECTRICAL CIRCUITS
03

Raise & Run

Once work is complete, the winch raises the tower back to vertical and the turbine returns to production — often in a single visit.

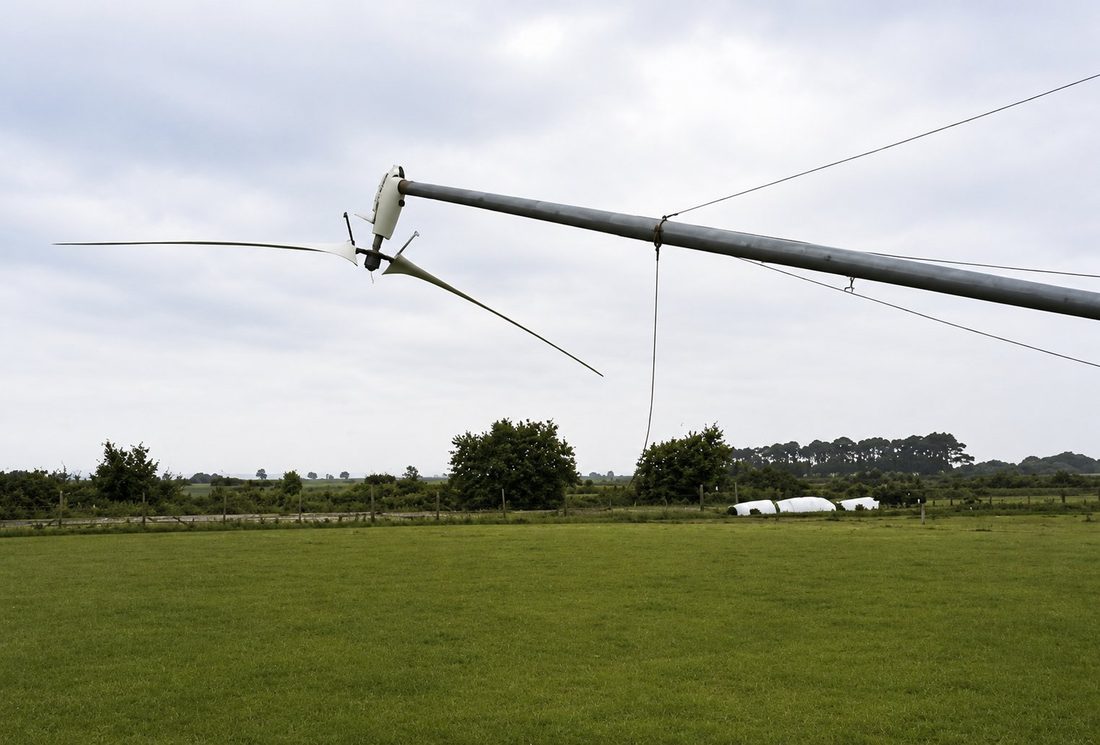

Carter two-blade rotor and nacelle on its lowered guyed tower at the Orton wind farm

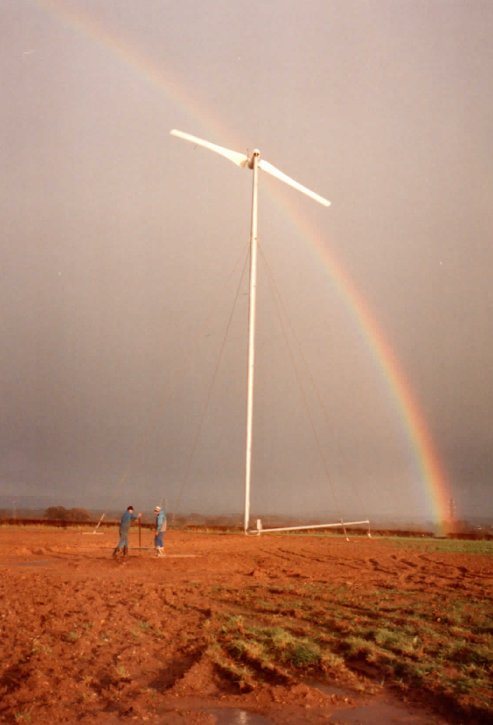

Erected Carter turbine on its tower, guy cables tensioned, ready to run
READY TO RUN

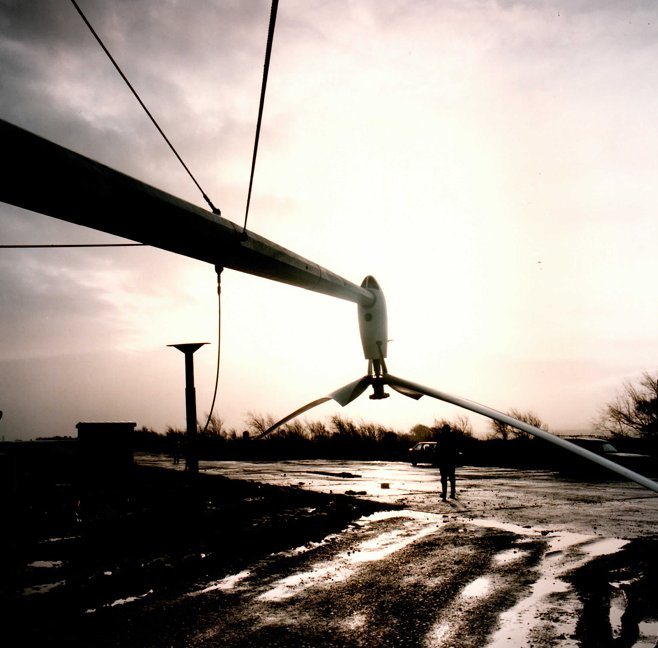

The tower being raised back up after service, tilting toward vertical
RAISING BACK UP
Operator at the base control panel starting the turbine, rotor turning above

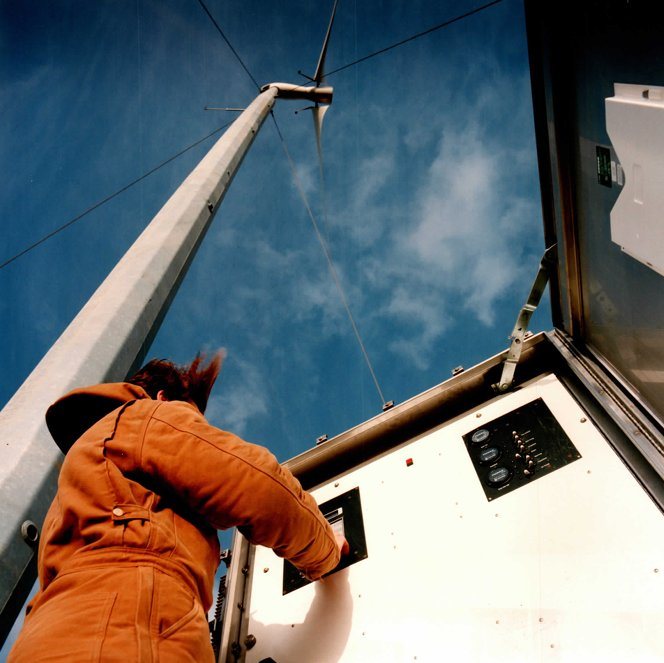

STARTING THE TURBINE

All photos taken at our 10-machine, 3 MW wind farm in Orton, Cumbria, England.
